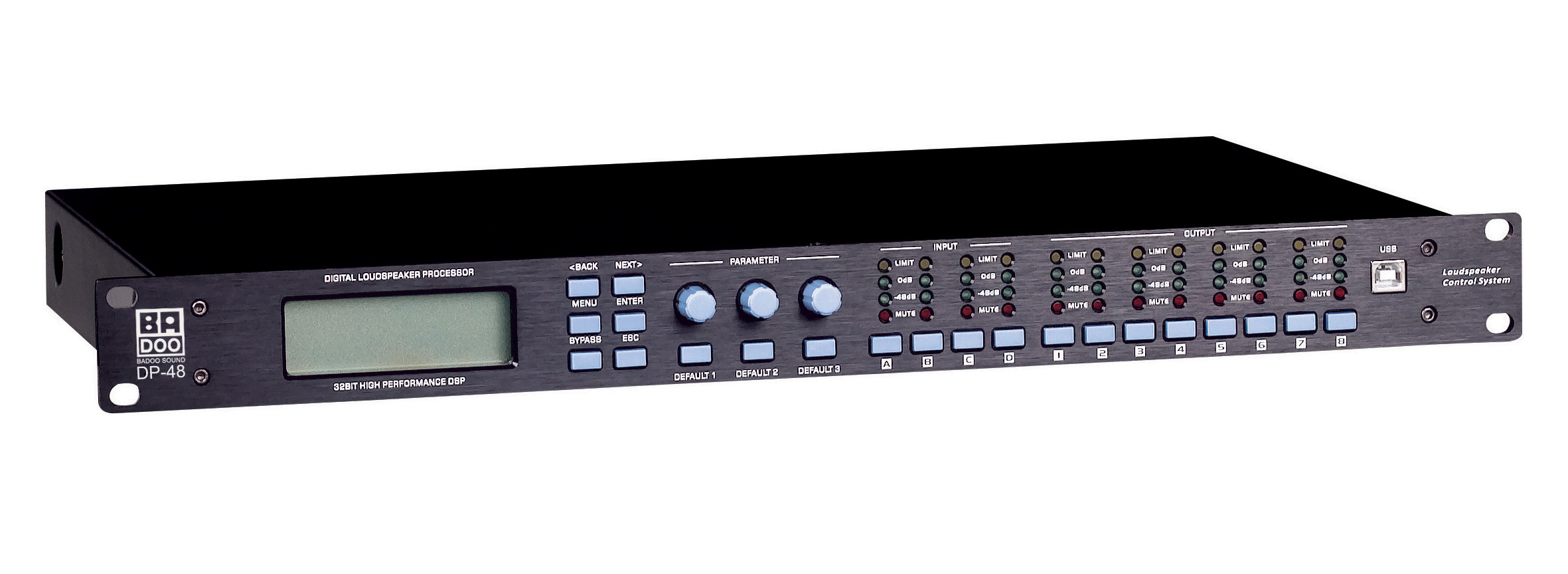

Digital Audio Processor

DPS-48

Specification

Model	DPS-48
Type	4input 8 output digital audio processor
	96kHz sampling frequency, using 300Mhz high performance floating-point processor
Inputs	4xXLR3 electronically balanced
	CMRR > 65dB (50Hz-10KHz)
Outputs	8xXLR3 electronically balanced Max level
	+ 20dB into 600 ohms load HIGH LOWPASS FILTERS
Filiters	1 of each per output
Frequency(HPF)	10Hz-16KHz, 1/36 octave steps
Frequency(LPF)	60Hz-22KHz, 1/36 octave steps
Response	Bessell/Butterworth 12/18/24dB per octave
	Linkwitz-Riley 24dB per octave,PARAMETRIC EQUALISATION
Filters	5 sections per output
Filter gain	+15dB to -30dB in 0.1 dB steps
Centre frequency	20Hz-20KHz, 1/36 octave steps (368 positions)
Filter Q/oct	0.01-10
Dimensions	44x483x285mm(HxWxD)
Net Weight	4.2Kg
