LS Series Line Array Speaker

LS-206SUB

Single 12inch subwoofer
Power 400W RMS
Sensitivity 97dB/1W/1M
Cabinet 18mm birch plywood
Product description: Badoo Sound LS-206SUB is a 12inch subwoofer speaker matching with LS-206 mini?line array speaker
INQUIRY

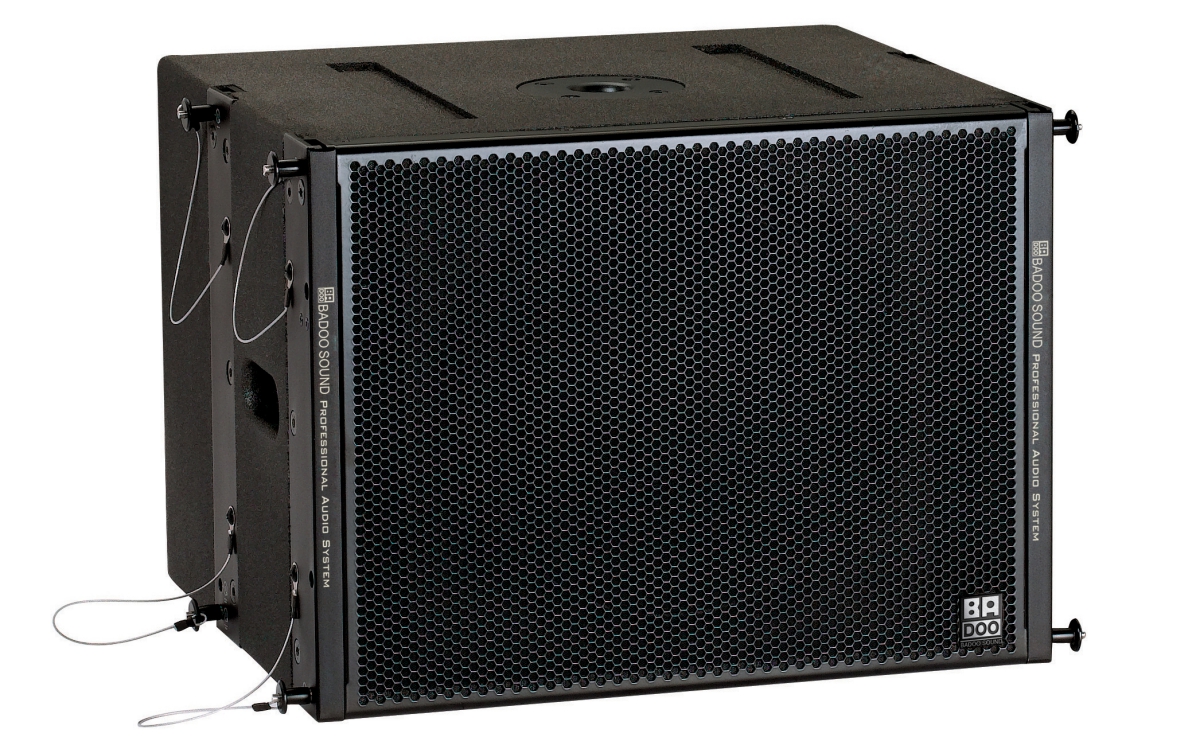

Badoo Sound LS-206SUB is a 12inch subwoofer speaker, designed to match with LS-206 mini line array speaker. The woofer speaker of LS-206 is 6.5inch, of which the low frequency response under 100Hz is cut off to get high quality sound, so it need a subwoofer LS-206SUB to compensate the low-freq, then combine as a 3-way line array sound system.

LS-206SUB uses a 12inch woofer speaker with 4inch voice coil, built in a cabinet with reflex holes at two sides. There is multi reinforcement plate inside the cabinet to reduce resonace, so to get powerful low frequency. The cabinet is made of birch plywood, with freindly environmental painting. With smart flyware, it is convenient for installation.

Specification

Model	LS-206SUB
Type	Single 12 Subwoofer, flying model
Drivers	1x12inch speaker, 190mm magnet, 3inch voice coil
Frequency Range	35Hz-300Hz(-3dB)
Power handling capacity	400W RMS,1600W Peak
Sensitivity	97dB/1W/1M
MaximumSPL	123dB Continue,129dB Peak
Rated lmpedance	8 ohm
Construction	18mm birch plywood box
	Aluminum alloy hoisting; black/white plastic painting;
	water/dust proof treating;
Connectors	Neutrik NL4
Dimensions	360 x 485 x 425mm
Net Weight	27.5Kg
