Active line array speaker

LS-110SUB ACTIVE

Single 15inch active subwoofer
Power 500W RMS
Sensitivity 101dB/1W/1M
Cabinet 18mm birch plywood
Product description: LS110SUB ACTIVE is a single 15" active subwoofer matching with line array speakers LS110, with powerful sound, specially design for live show or concert.
INQUIRY

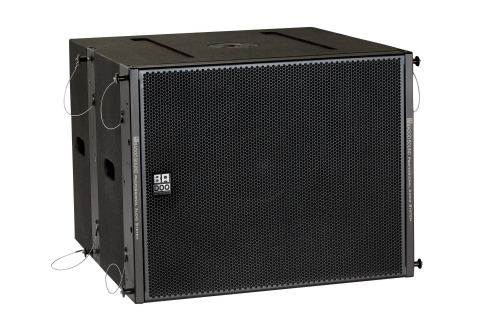

Badoo Sound LS110SUB ACTIVE is a single 15" active subwoofer matching with line array speakers LS110, with powerful sound, specially design for live show or concert. It is built with a 15" woofer seakers, with 220mm magnet and 4inch voice coil. It is with power 500watts RMS, and sensitivity 101dB/1W/1M. The cabinet is made of 18mm birch plywood, built with smart Aluminum alloy hoisting. It is normally in black with freindly environmental painting. There is a 3 channels class D power amplifier module inside the subwoofer, which can drive 1sub and 2 tops to combine as a 3-way active line array sound system.

Specification

Model	LS-110SUB ACTIVE
Type	Single 15" active subwoofer, flying model
Drivers	1x15inch speaker, 220mm magnet, 4inch voice coil
Frequency Range	35Hz-500Hz(-3dB)
Power handling capacity	500W RMS, 2000W Peak
Sensitivity	101dB/1W/1M
MaximumSPL	132dB Continue, 138dB Peak
Rated Impedance	8 ohm
Construction	18mm birch plywood box
	Aluminum alloy hoisting; black plastic painting
	water/dust proof treating;
Dimensions	580 x 460 x 600mm
Net Weight	61Kg
	Class D power amplifier module spec
Type	3 channels class D switch power amplifier
Output power	400W+400W+900W/8Ω
Input impedance	>20KΩ/>10KΩ
Frequency Range	20Hz-34KHz (+0/-0.3dB,1W/8Ω)
crosstalk	>70dB (1 kHz)
THD	<0.01% (4Ω/kHz%)
S/N	>112dB
Damping factor	500
DSP with Screen	High quality DSP processor, 48kHz sampling rate of frequency；High quality AD/DA
	Channel mixing as need, with EQ, phase, delay, crossover, limit, gain, mute
	15ms delay each channel，7 EQ each input, 6 EQ each output，running PEQ，High Sheif,Low Sheif EQ
	3 filter: Butterworth,Bessel,Linkwitz-Riley,12dB,18dB,24dB,48dB adjustable，frequency 1/36 Oct
	limiter,threshold,release time all adjustable
	showing working temperature on screen
Protection way	Boot AC soft start automatic protection、Over current automatic tracking soft protection
	Clipping voltage limit, load short circuit/overheat/DC output off load,
	shutdown protection, power on time delay
Connectors	XLR Female for input, XLR Male for output;
	XLR Female/Male Rs485 for DSP linking
	USB for computer controling
	Speakon NL4 to loop top speakers

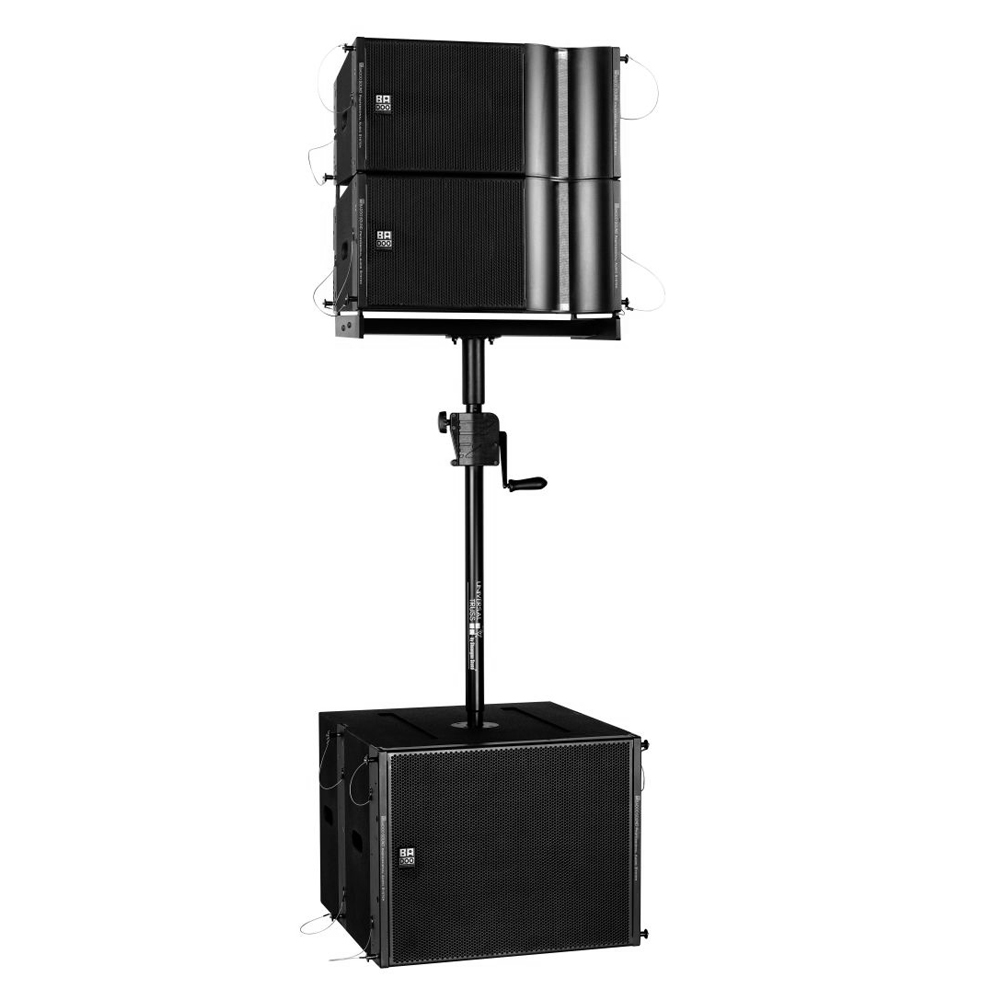

Remark:	the power amp will drive 1 LS-110SUB+2LS-110
