LS Series Line Array Speaker

LS-110

10inch 2 way line array speaker
10inch woofer 3inch voice coil
3inch tweeter
Power 500watts RMS
Product description: It is a 10inch line array speakers, designed for flown live?show, or installation in church, theatre, indoor stadium or mult-functional hall.
INQUIRY

Badoo Sound LS-110 is a single 10inch 2way line array speaker with big power and wide range of freq-response. It performs well under big dynamic, is designed for flown live show, or installation in church, theatre, indoor stadium or mult-functional hall. It uses accurate horn to control well the coverage of sound, to transfer spheroidal wave to plane wave, so to reduce abviously interferometer effect of High-Freq, to get much more clear sound in long distance. It can be used together with the LS-110SUB when it requires sub-low requency response.

LS-110 uses a 10inch woofer speakers(75mm voice coil), and a 3inch neodynium tweeter ( 1.4inch exit) with big power. Horn loaded construction offers high sensitivity(112dB/1W/1M) and creats a low warp wavefront. It uses improved horn to control well the vertical coverage exactly at 8 degree, so to make seamless joining of sound.

There is aluminum alloy flyware on each cabinet. The angle between each cabinet can be adjusted from 0°to 8°to meet different requirements.

Specification

Model	LS-110
Type	10" two way line array speaker
Drivers	LF: 1x10" speaker, 3" voice coil
	HF: 1x 3" compress driver neodymium; 3" voice coil
Frequency Range	70Hz-19KHz(-3dB)
Power handling capacity	HF: 150W RMS, 600W Peak
	LF: 350W RMS, 1400W Peak
Sensitivity	HF: 113dB/1W/1m
	LF: 99dB/1W/1m
MaximumSPL	HF:135dB Continue, 140dB Peak
	LF: 125dB Continue, 131dB Peak
Rated lmpedance	HF: 16Ω
	LF: 16Ω
Coverage(H x V)	110 x 8 degree
Construction	18mm birch plywood box
	Aluminum alloy hoisting; black plastic painting
	water/dust proof treating;
Connectors	Neutrik NL4 LF:1+ 1- HF:2+ 2-

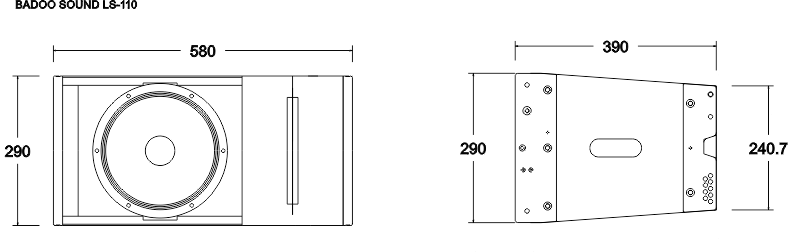

Dimensions	580 x290 x 390mm
Net Weight	26Kg
