Active line array speaker

DLA-308 ACTIVE

8inch 3 way active line array
8inch woofer, 6.5inch midrange, 2inch tweeter
Frequency 70Hz-19KHz(-3dB)
Power 530 Watts RMS
Product description: Badoo Sound DLA308 is a three way 8inch active line array speakers, designed for concert, live show, hall, church, stadium, ect.
INQUIRY

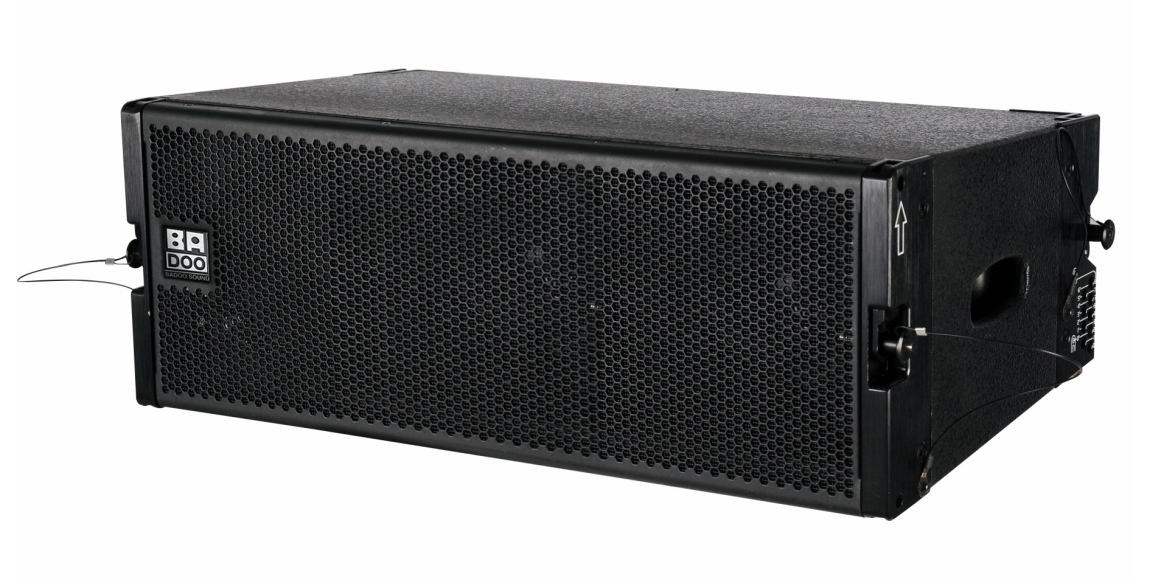

Badoo Sound DLA308 ACTIVE is a 8” three way line array speaker. It is designed for church, hall, theatre or stadium indoor venues. It can be hanged up, also can stand on ground, so it could be used in lots of place. It could also be used as delay system or sound reinforcement system for large outdoor live show.

It is a 3-way line array speaker based on the principles of line array, but with smaller volume and larger dynamic impact. It offers full range frequency with amazing sound. It could be used together with DLA308SUB ACTIVE to combine as a 4-way active sound system.

In order to make the SPL and tone with better unity, we used actually curved array to produce curved wavefront to cover all required area. It uses better design to form such wavefront. There is a 2 channels class D power amplifier module built in the cabinet to drive the speakers. It is with high quality DSP to set EQ, phase, delay, crossover, limit, gain, mute, ect.

There is aluminum alloy joint-bar on back of each box to adjust the angle between box and box from 0°~8°. The minimum quantity for application of DLA308 ACTIVE is 4 pcs. It is also workable to use 8 pcs, 12 pcs, or even 16 pcs, according to the requirements of actual SPL and scale of field.

Specification

Model	DLA-308 ACTIVE
Type	8" three way active line array speaker
Drivers	LF: 1x8" speaker, 50mm voice coil
	MF: 1x 6.5" speaker, 50mm voice coil;
	HF: 2 x 1.5"titanium diaphragm compress driver; 44mm voice coil; horn
Frequency Range	70Hz-19KHz(-3dB)
Power handling capacity	HF: 80W RMS, 320W Peak
	MF: 150W RMS, 600W Peak
	LF: 200W RMS, 800W Peak
Sensitivity	HF: 106dB/1W/1m
	MF: 102dB/1W/1m
	LF: 96dB/1W/1m
MaximumSPL	HF:123dB Continue,129dB Peak
	MF: 123dB Continue,129dB Peak
	LF: 120dB Continue,126dB Peak
Rated lmpedance	HF: 16Ω
	MF: 16Ω
	LF: 16Ω
Coverage(H x V)	120 x 10 degree
Fittings	proprietary fitting system
Construction	18mm birch plywood box; black painting; water proof.
Connectors	Speakon NL8

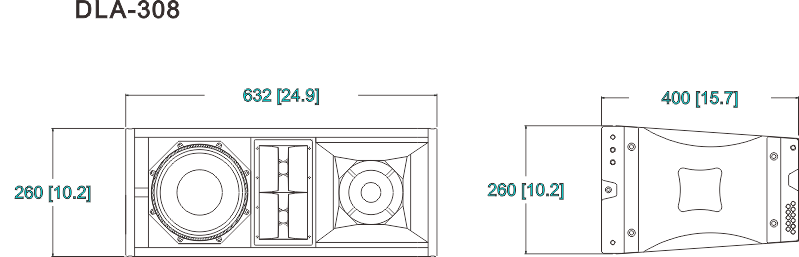

Dimensions	632mm x 260mm x 400mm(WxHxD)
Net Weight	27Kg

	Class D power amplifier module spec
Type	2 channels class D switch power amplifier
Output power	400W+900W/8?
Input impedance	>20KΩ/>10KΩ
Frequency Range	20Hz-34KHz (+0/-0.3dB,1W/8Ω)
crosstalk	>70dB (1 kHz)
THD	<0.01% (4Ω/kHz%)
S/N	>112dB
Damping factor	500
DSP with Screen	High quality DSP processor, 48kHz sampling rate of frequency；High quality AD/DA
	Channel mixing as need, with EQ, phase, delay, crossover, limit, gain, mute
	15ms delay each channel，7 EQ each input, 6 EQ each output，running PEQ，High Sheif,Low Sheif EQ
	3 filter: Butterworth,Bessel,Linkwitz-Riley,12dB,18dB,24dB,48dB adjustable，frequency 1/36 Oct
	limiter,threshold,release time all adjustable
	showing working temperature on screen
Protection way	Boot AC soft start automatic protection、Over current automatic tracking soft protection
	Clipping voltage limit, load short circuit/overheat/DC output off load,
	shutdown protection, power on time delay
Connectors	XLR Female for input, XLR Male for output;
	XLR Female/Male Rs485 for DSP linking
	USB for computer controling
